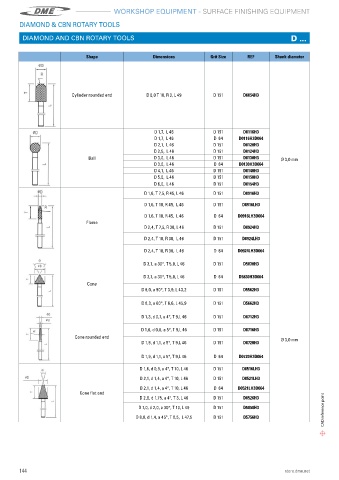

Page 146 - DME Workshop Equipment Catalogue 2023 EN

SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
A
CE FINISHING EQUIPMENT
DIAMOND & CBN ROTARY TOOLS
DIAMOND AND CBN ROTARY TOOLS D ...

Shape Dimensions Grit Size REF Shank diameter

Cylinder rounded end D 6,0 T 10, R 3, L 49 D 151 D6054H3

D 1,7, L 46 D 151 D0116H3
D 1,7, L 46 D 64 D0116H3D064
D 2,1, L 46 D 151 D0120H3
D 2,5, L 46 D 151 D0124H3
Ball D 3,0, L 46 D 151 D0130H3 Ø 3,0 mm
D 3,0, L 46 D 64 D0130H3D064
D 4,1, L 46 D 151 D0140H3
D 5,0, L 46 D 151 D0150H3
D 6,0, L 46 D 151 D0154H3
D 1,6, T 7,5, R 45, L 46 D 151 D0916H3
D 1,6, T 10, R 45, L 46 D 151 D0916LH3

D 1,6, T 10, R 45, L 46 D 64 D0916LH3D064
Flame
D 2,4, T 7,5, R 30, L 46 D 151 D0924H3

D 2,4, T 10, R 30, L 46 D 151 D0924LH3
D 2,4, T 10, R 30, L 46 D 64 D0924LH3D064

D 3,1, a 30°, T 5,0, L 46 D 151 D5830H3

D 3,1, a 30°, T 5,0, L 46 D 64 D5830H3D064
Cone
D 8,0, a 90°, T 3,9, L 43,2 D 151 D5562H3

D 8,0, a 60°, T 6,6, L 45,9 D 151 D5662H3

D 1,3, d 0,7, a 4°, T 9,L 46 D 151 D0712H3

D 1,6, d 0,8, a 5°, T 9,L 46 D 151 D0716H3
Cone rounded end Ø 3,0 mm
D 1,9, d 1,1, a 5°, T 9,L 46 D 151 D0720H3

D 1,9, d 1,1, a 5°, T 9,L 46 D 64 D0720H3D064
D 1,6, d 0,9, a 4°, T 10, L 46 D 151 D0516LH3
D 2,1, d 1,4, a 4°, T 10, L 46 D 151 D0521LH3
D 2,1, d 1,4, a 4°, T 10, L 46 D 64 D0521LH3D064
Cone flat end
CAD reference point
D 2,6, d 1,75, a 4°, T 3, L 46 D 151 D0526H3
D 7,0, d 2,0, a 30°, T 10, L 49 D 151 D5858H3
D 8,0, d 1,4, a 45°, T 8,5, L 47,5 D 151 D5756H3
