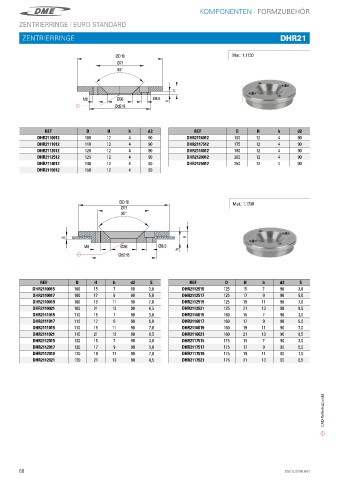

Page 70 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
ZENTRIERRINGE / EURO STANDARD

ZENTRIERRINGE DHR21

Mat�: 1�1730

REF D H h d2 REF D H h d2
DHR2110012 100 12 4 90 DHR2116012 160 12 4 90
DHR2111012 110 12 4 90 DHR2117512 175 12 4 90
DHR2112012 120 12 4 90 DHR2118012 180 12 4 90
DHR2112512 125 12 4 90 DHR2120012 200 12 4 90
DHR2114012 140 12 4 90 DHR2125012 250 12 4 90
DHR2115012 150 12 4 90

Mat�: 1�1730

REF D H h d2 S REF D H h d2 S
DHR2110015 100 15 7 90 3,0 DHR2112515 125 15 7 90 3,0
DHR2110017 100 17 9 90 5,0 DHR2112517 125 17 9 90 5,0
DHR2110019 100 19 11 90 7,0 DHR2112519 125 19 11 90 7,0
DHR2110021 100 21 13 90 8,5 DHR2112521 125 21 13 90 8,5
DHR2111015 110 15 7 90 3,0 DHR2116015 160 15 7 90 3,0
DHR2111017 110 17 9 90 5,0 DHR2116017 160 17 9 90 5,0
DHR2111019 110 19 11 90 7,0 DHR2116019 160 19 11 90 7,0
DHR2111021 110 21 13 90 8,5 DHR2116021 160 21 13 90 8,5
DHR2112015 120 15 7 90 3,0 DHR2117515 175 15 7 90 3,0
DHR2112017 120 17 9 90 5,0 DHR2117517 175 17 9 90 5,0
DHR2112019 120 19 11 90 7,0 DHR2117519 175 19 11 90 7,0
DHR2112021 120 21 13 90 8,5 DHR2117521 175 21 13 90 8,5

CAD-Referenzpunkt
