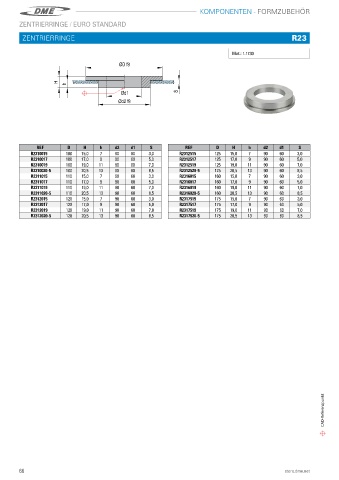

Page 68 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
ZENTRIERRINGE / EURO STANDARD

ZENTRIERRINGE R23

Mat�: 1�1730

REF D H h d2 d1 S REF D H h d2 d1 S
R2310015 100 15,0 7 90 60 3,0 R2312515 125 15,0 7 90 60 3,0
R2310017 100 17,0 9 90 60 5,0 R2312517 125 17,0 9 90 60 5,0
R2310019 100 19,0 11 90 60 7,0 R2312519 125 19,0 11 90 60 7,0
R2310020-5 100 20,5 13 90 60 8,5 R2312520-5 125 20,5 13 90 60 8,5
R2311015 110 15,0 7 90 60 3,0 R2316015 160 15,0 7 90 60 3,0
R2311017 110 17,0 9 90 60 5,0 R2316017 160 17,0 9 90 60 5,0
R2311019 110 19,0 11 90 60 7,0 R2316019 160 19,0 11 90 60 7,0
R2311020-5 110 20,5 13 90 60 8,5 R2316020-5 160 20,5 13 90 60 8,5
R2312015 120 15,0 7 90 60 3,0 R2317515 175 15,0 7 90 60 3,0
R2312017 120 17,0 9 90 60 5,0 R2317517 175 17,0 9 90 60 5,0
R2312019 120 19,0 11 90 60 7,0 R2317519 175 19,0 11 90 60 7,0
R2312020-5 120 20,5 13 90 60 8,5 R2317520-5 175 20,5 13 90 60 8,5

CAD-Referenzpunkt

66 store.dme.net
