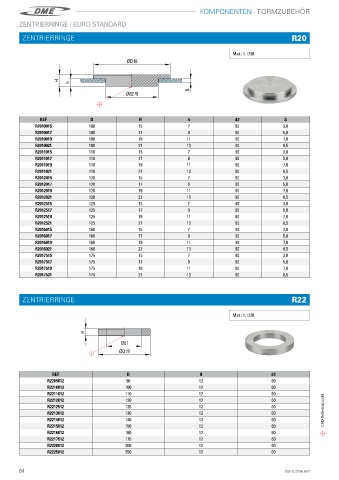

Page 66 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
ZENTRIERRINGE / EURO STANDARD

ZENTRIERRINGE R20

Mat�: 1�1730

REF D H h d2 S
R2010015 100 15 7 90 3,0
R2010017 100 17 9 90 5,0
R2010019 100 19 11 90 7,0
R2010021 100 21 13 90 8,5
R2011015 110 15 7 90 3,0
R2011017 110 17 9 90 5,0
R2011019 110 19 11 90 7,0
R2011021 110 21 13 90 8,5
R2012015 120 15 7 90 3,0
R2012017 120 17 9 90 5,0
R2012019 120 19 11 90 7,0
R2012021 120 21 13 90 8,5
R2012515 125 15 7 90 3,0
R2012517 125 17 9 90 5,0
R2012519 125 19 11 90 7,0
R2012521 125 21 13 90 8,5
R2016015 160 15 7 90 3,0
R2016017 160 17 9 90 5,0
R2016019 160 19 11 90 7,0
R2016021 160 21 13 90 8,5
R2017515 175 15 7 90 3,0
R2017517 175 17 9 90 5,0
R2017519 175 19 11 90 7,0
R2017521 175 21 13 90 8,5

ZENTRIERRINGE R22

Mat�: 1�1730

REF D H d1
R2209012 90 12 60
R2210012 100 12 60
R2211012 110 12 60
R2212012 120 12 60
R2212512 125 12 60
R2213012 130 12 60 CAD-Referenzpunkt
R2214012 140 12 60
R2215012 150 12 60
R2216012 160 12 60
R2217512 175 12 60
R2220012 200 12 60
R2225012 250 12 60

64 store.dme.net
