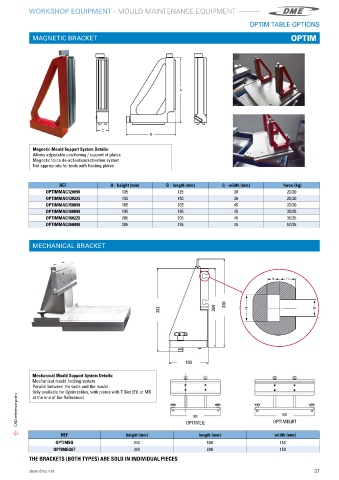

Page 39 - DME Workshop Equipment Catalogue 2023 EN

MOULD MAINTENANCE EQUIPMENT
WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
OPTIM TABLE OPTIONS

MAGNETIC BRACKET OPTIM

Magnetic Mould Support System Details:
Allows adjustable positioning / support of plates
Magnetic force de-activation/activation system
Not appropriate for tools with floating plates

REF A - height (mm) B - length (mm) C - width (mm) force (kg)
OPTIMMAG120090 135 125 38 20/20
OPTIMMAG130225 150 150 38 20/20
OPTIMMAG150090 165 165 45 30/30
OPTIMMAG180090 195 195 45 35/35
OPTIMMAG180225 205 205 45 35/35
OPTIMMAG260090 285 195 45 50/35

MECHANICAL BRACKET

9 11
9 11

340
322 304 340 19 12
322 304 19 12

150
150
Mechanical Mould Support System Details:
Mechanical mould holding system
Parallel between the table and the mould
Only available for Optim tables, with plates with T Slot (EQ or MB
CAD reference point 500 OPTIMEQ6T
at the end of the Reference)

600
OPTIMEQ
600
500
OPTIMEQ OPTIMEQ6T
REF height (mm) length (mm) width (mm)
OPTIMEQ 340 500 150
OPTIMEQ6T 340 600 150
THE BRACKETS (BOTH TYPES) ARE SOLD IN INDIVIDUAL PIECES

store.dme.net 37
