MOULD MAINTENANCE EQUIPMENT
WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT

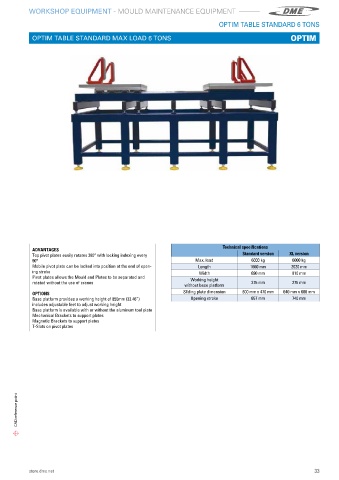

OPTIM TABLE STANDARD 6 TONS
OPTIM
OPTIM TABLE STANDARD MAX LOAD 6 TONS OPTIM
Technical specifications
ADVANTAGES
Top pivot plates easily rotates 360° with locking indexing every Standard version XL version
90° Max� load 6000 kg 6000 kg
Mobile pivot plate can be locked into position at the end of open- Length 1660 mm 2020 mm
ing stroke Width 690 mm 810 mm
Pivot plates allows the Mould and Plates to be separated and Working height
rotated without the use of cranes 275 mm 275 mm
without base platform
OPTIONS Sliding plate dimension 600 mm x 470 mm 640 mm x 600 mm
Base platform provides a working height of 850mm (33�46”) Opening stroke 657 mm 740 mm
includes adjustable feet to adjust working height
Base platform is available with or without the aluminum tool plate
Mechanical Brackets to support plates
Magnetic Brackets to support plates
T-Slots on pivot plates
CAD reference point
