MOULD MAINTENANCE EQUIPMENT
                                     WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT

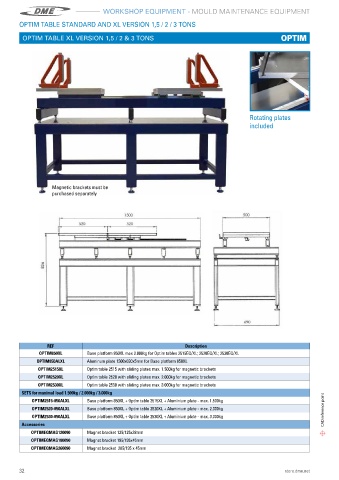

        OPTIM TABLE STANDARD AND XL VERSION 1,5 / 2 / 3 TONS

                                                                                                    OPTIM
         OPTIM TABLE XL VERSION 1,5 / 2 & 3 TONS                                                    OPTIM















                                                                                         Rotating plates
                                                                                         included











                   Magnetic brackets must be
                   purchased separately































                  REF                                             Description
               OPTIM850XL       Base platform 850XL max 3�000kg for Optim tables 2515EQ/XL; 2520EQ/XL; 2530EQ/XL
              OPTIM850ALXL      Aluminum plate 1500x690x5mm for Base platform 850XL
              OPTIM2515XL       Optim table 2515 with sliding plates max� 1�500kg for magnetic brackets
              OPTIM2520XL       Optim table 2520 with sliding plates max� 2�000kg for magnetic brackets
              OPTIM2530XL       Optim table 2530 with sliding plates max� 3�000kg for magnetic brackets
         SETS for maximal load 1.500kg / 2.000kg / 3.000kg
            OPTIM2515-850ALXL   Base platform 850XL + Optim table 2515XL + Aluminium plate - max� 1�500kg
            OPTIM2520-850ALXL   Base platform 850XL + Optim table 2520XL + Aluminium plate - max� 2�000kg          CAD reference point
            OPTIM2530-850ALXL   Base platform 850XL + Optim table 2530XL + Aluminium plate - max� 3�000kg
         Accessories
            OPTIMEQMAG120090    Magnet bracket 135/125x38mm
            OPTIMEQMAG180090    Magnet bracket 195/195x45mm
            OPTIMEQMAG260090    Magnet bracket  285/195 x 45mm
