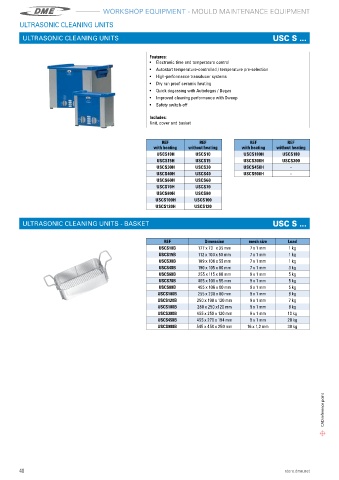

Page 42 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
MOULD MAINTENANCE EQUIPMENT
ULTRASONIC CLEANING UNITS

ULTRASONIC CLEANING UNITS USC S ...

Features:
• Electronic time and temperature control
• Autostart temperature-controlled / temperature pre-selection
• High-performance transducer systems
• Dry run proof ceramic heating
• Quick degassing with Autodegas / Degas
• Improved cleaning perfor mance with Sweep
• Safety switch-off

Includes:
Unit, cover and basket

REF REF REF REF
with heating without heating with heating without heating
USCS10H USCS10 USCS180H USCS180
USCS15H USCS15 USCS300H USCS300
USCS30H USCS30 USCS450H -
USCS40H USCS40 USCS900H -
USCS60H USCS60
USCS70H USCS70
USCS80H USCS80
USCS100H USCS100
USCS120H USCS120

ULTRASONIC CLEANING UNITS - BASKET USC S ...

REF Dimension mesh size Load
USCS10B 177 x 73 x 35 mm 7 x 1 mm 1 kg
USCS15B 112 x 103 x 50 mm 7 x 1 mm 1 kg
USCS30B 189 x 106 x 55 mm 7 x 1 mm 1 kg
USCS40B 190 x 105 x 80 mm 7 x 1 mm 3 kg
USCS60B 255 x 115 x 80 mm 9 x 1 mm 5 kg
USCS70B 465 x 106 x 55 mm 9 x 1 mm 5 kg
USCS80B 455 x 106 x 80 mm 9 x 1 mm 5 kg
USCS100B 255 x 200 x 80 mm 9 x 1 mm 6 kg
USCS120B 250 x 190 x 120 mm 9 x 1 mm 7 kg
USCS180B 280 x 250 x120 mm 9 x 1 mm 8 kg
USCS300B 455 x 250 x 120 mm 9 x 1 mm 10 kg
USCS450B 455 x 270 x 194 mm 9 x 1 mm 20 kg
USCS900B 545 x 450 x 250 mm 16 x 1,2 mm 30 kg

CAD reference point

40 store.dme.net
