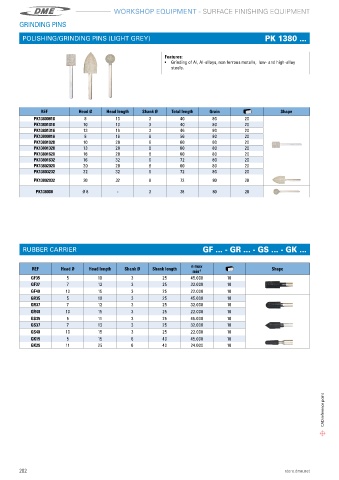

Page 204 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
GRINDING PINS
POLISHING/GRINDING PINS (LIGHT GREY) PK 1380 ...

Features:
• Grinding of Al, Al-alloys, non ferrous metalls, low- and high-alloy
steels�

REF Head Ø Head length Shank Ø Total length Grain Shape
PK13800810 8 10 3 40 80 20
PK13801010 10 10 3 40 80 20
PK13801316 13 16 3 46 80 20
PK13800816 8 16 6 56 80 20
PK13801020 10 20 6 60 80 20
PK13801320 13 20 6 60 80 20
PK13801620 16 20 6 60 80 20
PK13801632 16 32 6 72 80 20
PK13802020 20 20 6 60 80 20
PK13803232 32 32 6 72 80 20
PK13802032 20 32 6 72 80 20
PK138008 Ø 8 - 3 38 80 20

RUBBER CARRIER GF ... - GR ... - GS ... - GK ...

REF Head Ø Head length Shank Ø Shank length n max Shape
min -1
GF35 5 10 3 25 45�000 10
GF37 7 12 3 25 32�000 10
GF40 10 15 3 25 22�000 10
GR35 5 10 3 25 45�000 10
GR37 7 12 3 25 32�000 10
GR40 10 15 3 25 22�000 10
GS35 5 11 3 25 45�000 10
GS37 7 13 3 25 32�000 10
GS40 10 15 3 25 22�000 10
GK15 5 15 6 40 45�000 10
GK25 11 25 6 40 24�000 10

CAD reference point
