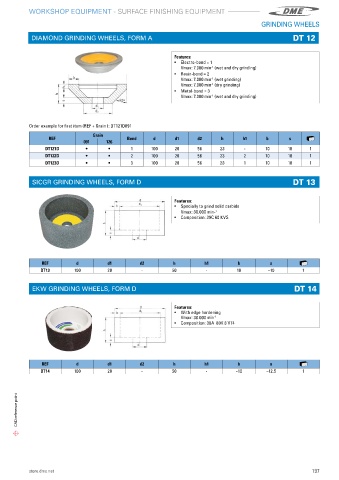

Page 199 - DME Workshop Equipment Catalogue 2023 EN

CE FINISHING EQUIPMENT
A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
GRINDING WHEELS
DIAMOND GRINDING WHEELS, FORM A DT 12

Features:
• Electro-bond = 1
-1
Vmax: 7�000 min (wet and dry grinding)
• Resin-bond = 2
Vmax: 7�000 min (wet grinding)
-1
-1
Vmax: 7�000 min (dry grinding)
• Metal-bond = 3
Vmax: 7�000 min (wet and dry grinding)
-1

Order example for first item (REF + Grain ): DT121D091
Grain
REF Bond d d1 d2 h h1 b s
091 126
DT121D i i 1 100 20 56 23 - 10 10 1
DT122D i i 2 100 20 56 23 2 10 10 1
DT123D i i 3 100 20 56 23 1 10 10 1

SICGR GRINDING WHEELS, FORM D DT 13

Features:
• Specially to grind solid carbide
Vmax: 30�000 min- 1
• Composition: 39C 60 KVS

REF d d1 d2 h h1 b s
DT13 100 20 - 50 - 10 ~10 1

EKW GRINDING WHEELS, FORM D DT 14

Features:
• With edge hardening
Vmax: 30�000 min -1
• Composition: 30A 80K 8 V74

REF d d1 d2 h h1 b s
DT14 100 20 - 50 - ~10 ~12�5 1

CAD reference point
