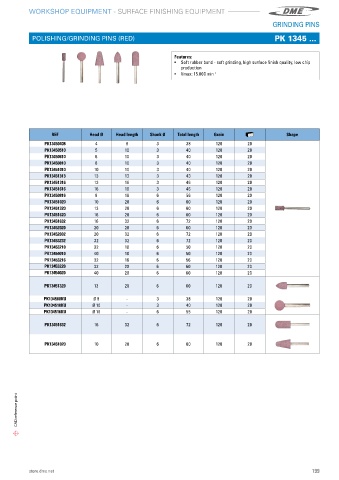

Page 201 - DME Workshop Equipment Catalogue 2023 EN

CE FINISHING EQUIPMENT
A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
GRINDING PINS
POLISHING/GRINDING PINS (RED) PK 1345 ...

Features:
• Soft rubber bond - soft grinding, high surface finish quality, low chip
production
• Vmax: 15�000 min -1

REF Head Ø Head length Shank Ø Total length Grain Shape
PK13450408 4 8 3 38 120 20
PK13450510 5 10 3 40 120 20
PK13450610 6 10 3 40 120 20
PK13450810 8 10 3 40 120 20
PK13451010 10 10 3 40 120 20
PK13451313 13 13 3 43 120 20
PK13451316 13 16 3 46 120 20
PK13451616 16 16 3 46 120 20
PK13450816 8 16 6 56 120 20
PK13451020 10 20 6 60 120 20
PK13451320 13 20 6 60 120 20
PK13451620 16 20 6 60 120 20
PK13451632 16 32 6 72 120 20
PK13452020 20 20 6 60 120 20
PK13452032 20 32 6 72 120 20
PK13453232 32 32 6 72 120 20
PK13453210 32 10 6 50 120 20
PK13454010 40 10 6 50 120 20
PK13453216 32 16 6 56 120 20
PK13453220 32 20 6 60 120 20
PK13454020 40 20 6 60 120 20

PK13451320 13 20 6 60 120 20

PK134508KU Ø 8 - 3 38 120 20
PK134510KU Ø 10 - 3 40 120 20
PK134516KU Ø 16 - 6 55 120 20
PK13451632 16 32 6 72 120 20

PK13451020 10 20 6 60 120 20

CAD reference point
