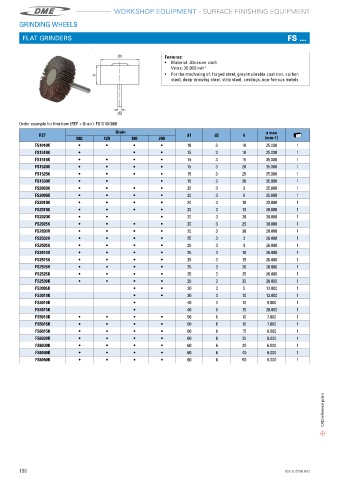

Page 200 - DME Workshop Equipment Catalogue 2023 EN

SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
A
GRINDING WHEELS
FLAT GRINDERS FS ...

Features:
• Material: Abrasive cloth
Vmax: 35�000 min -1
• For the machining of: forged steel, grey/malleable cast iron, carbon
steel, deep-drawing steel, strip steel, castings, non-ferrous metals

Order example for first item (REF + Grain): FS1010K080
Grain n max
REF d1 d2 h
080 120 180 240 (min-1)
FS1010K i i i i 10 3 10 35�000 1
FS1510K i i i 15 3 10 35�000 1
FS1515K i i i i 15 3 15 35�000 1
FS1520K i i i i 15 3 20 35�000 1
FS1525K i i i i 15 3 25 35�000 1
FS1530K i i i 15 3 30 35�000 1
FS2003K i i i i 20 3 3 35�000 1
FS2005K i i i i 20 3 5 35�000 1
FS2010K i i i i 20 3 10 30�000 1
FS2015K i i i i 20 3 15 30�000 1
FS2020K i i i 20 3 20 30�000 1
FS2025K i i i i 20 3 25 30�000 1
FS2030K i i i i 20 3 30 30�000 1
FS2503K i i i i 25 3 3 26�000 1
FS2505K i i i i 25 3 5 26�000 1
FS2510K i i i i 25 3 10 26�000 1
FS2515K i i i i 25 3 15 26�000 1
FS2520K i i i i 25 3 20 26�000 1
FS2525K i i i i 25 3 25 26�000 1
FS2530K i i i i 25 3 30 26�000 1
FS3005K i i 30 3 5 12�000 1
FS3010K i i 30 3 10 12�000 1
FS4010K i 40 3 10 9�000 1
FS4015K i 40 6 15 20�000 1
FS5010K i i i i 50 6 10 7�000 1
FS5015K i i i i 50 6 15 7�000 1
FS6015K i i i i 60 6 15 6�000 1
FS6020K i i i i 60 6 20 6�000 1
FS6030K i i i i 60 6 30 6�000 1
FS6040K i i i i 60 6 40 6�000 1
FS6050K i i i i 60 6 50 6�000 1

CAD reference point
