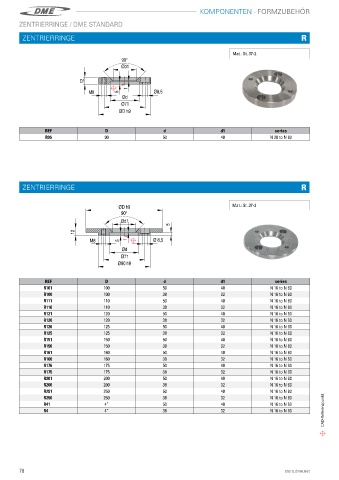

Page 80 - DME Hochprazise Formkomponenten Katalog

KOMPONENTEN - FORMZUBEHÖR
ZENTRIERRINGE / DME STANDARD

ZENTRIERRINGE R

Mat�: St� 37-2

REF D d d1 series
R95 90 50 40 N 20 to N 60

ZENTRIERRINGE

ZENTRIERRINGE R

Mat�: St� 37-2

REF D d d1 series
R101 100 50 40 N 16 to N 60
R100 100 38 32 N 16 to N 60
R111 110 50 40 N 16 to N 60
R110 110 38 32 N 16 to N 60
R121 120 50 40 N 16 to N 60
R120 120 38 32 N 16 to N 60
R126 125 50 40 N 16 to N 60
R125 125 38 32 N 16 to N 60
R151 150 50 40 N 16 to N 60
R150 150 38 32 N 16 to N 60
R161 160 50 40 N 16 to N 60
R160 160 38 32 N 16 to N 60
R176 175 50 40 N 16 to N 60
R175 175 38 32 N 16 to N 60
R201 200 50 40 N 16 to N 60
R200 200 38 32 N 16 to N 60
R251 250 50 40 N 16 to N 60
R250 250 38 32 N 16 to N 60
R41 4” 50 40 N 16 to N 60
R4 4” 38 32 N 16 to N 60 CAD-Referenzpunkt
