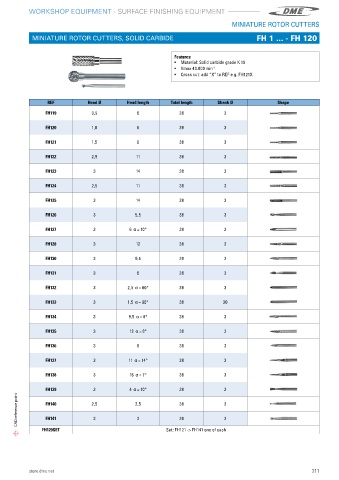

Page 213 - DME Workshop Equipment Catalogue 2023 EN

SURF
CE FINISHING EQUIPMENT
A
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
MINIATURE ROTOR CUTTERS
MINIATURE ROTOR CUTTERS, SOLID CARBIDE FH 1 ... - FH 120

Features:
• Material: Solid carbide grade K 10
• Vmax 40�000 min
-1
• Cross cut: add “X” to REF e�g� FH121X

REF Head Ø Head length Total length Shank Ø Shape
FH119 0,5 6 38 3

FH120 1,0 6 38 3

FH121 1,5 6 38 3

FH122 2,5 11 38 3

FH123 3 14 38 3

FH124 2,5 11 38 3

FH125 3 14 38 3

FH126 3 5,5 38 3

FH127 3 6 α = 10° 38 3

FH128 3 12 38 3

FH130 3 9,5 38 3

FH131 3 6 38 3

FH132 3 2,5 α = 60° 38 3

FH133 3 1,5 α = 90° 38 30

FH134 3 9,5 α = 8° 38 3

FH135 3 12 α = 8° 38 3

FH136 3 6 38 3

FH137 3 11 α = 14° 38 3

FH138 3 16 α = 7° 38 3

FH139 3 4 α = 10° 38 3
CAD reference point FH140 2,5 2,5 38 3 3

38
FH141
3
3
FH120SET Set: FH121 -> FH141 one of each
