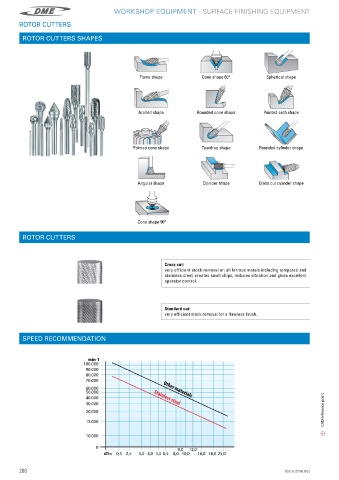

P. 210
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
A
CE FINISHING EQUIPMENT
ROTOR CUTTERS
ROTOR CUTTERS SHAPES
Flame shape Cone shape 60° Spherical shape
Arched shape Rounded cone shape Pointed arch shape
Pointed cone shape Teardrop shape Rounded cylinder shape
Angular shape Cylinder shape Cross cut cylinder shape
Cone shape 90°
ROTOR CUTTERS
Cross cut:
very efficient stock removal on all ferrous metals including tempered and
stainless steel, creates small chips, reduces vibration and gives excellent
operator control�
Standard cut:
very efficient stock removal for a flawless finish�
SPEED RECOMMENDATION
min-1
100.000
90.000
80.000
70.000
60.000 Other materials
50.000
40.000 Stainless steel
30.000
20.000 CAD reference point
15.000
10.000
0 9,0 12,0
d1= 0,5 2,5 3,0 4,0 5,0 6,5 8,0 10,0 16,0 18,0 25,0
