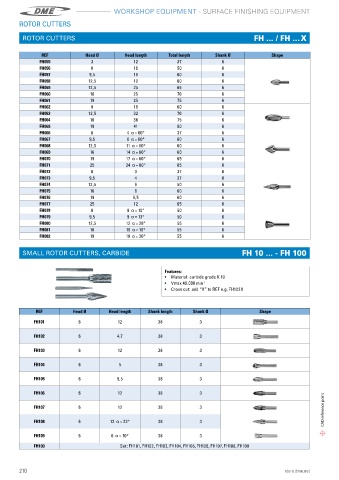

Page 212 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
CE FINISHING EQUIPMENT
ROTOR CUTTERS
ROTOR CUTTERS FH ... / FH ... X

REF Head Ø Head length Total length Shank Ø Shape
FH055 3 12 37 6
FH056 6 16 50 6
FH057 9,5 19 60 6
FH058 12,5 19 60 6
FH059 12,5 25 65 6
FH060 16 25 70 6
FH061 19 25 75 6
FH062 8 19 60 6
FH063 12,5 32 70 6
FH064 16 36 75 6
FH065 19 41 80 6
FH066 6 4 α = 60° 37 6
FH067 9,5 8 α = 60° 60 6
FH068 12,5 11 α = 60° 60 6
FH069 16 14 α = 60° 60 6
FH070 19 17 α = 60° 65 6
FH071 25 24 α = 60° 65 6
FH072 6 3 37 6
FH073 9,5 4 37 6
FH074 12,5 6 50 6
FH075 16 8 60 6
FH076 19 9,5 60 6
FH077 25 12 65 6
FH078 6 8 α = 10° 50 6
FH079 9,5 9 α = 13° 50 6
FH080 12,5 12 α = 28° 55 6
FH081 16 16 α = 18° 55 6
FH082 19 19 α = 30° 55 6

SMALL ROTOR CUTTERS, CARBIDE FH 10 ... - FH 100

Features:
• Material: carbide grade K 10
• Vmax 40�000 min
-1
• Cross cut: add “X” to REF e�g� FH102X

REF Head Ø Head length Shank length Shank Ø Shape
FH101 6 12 38 3

FH102 6 4,7 38 3

FH103 6 12 38 3

FH104 6 5 38 3

FH105 6 9,5 38 3

FH106 6 12 38 3
CAD reference point
FH107 6 12 38 3

FH108 6 12 α = 22° 38 3

FH109 6 6 α = 10° 38 3
FH100 Set: FH101, FH102, FH103, FH104, FH105, FH106, FH107, FH108, FH109
