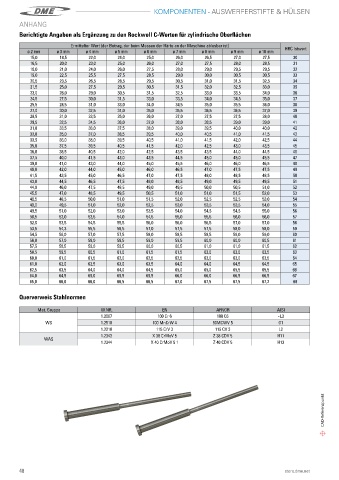

KOMPONENTEN - AUSWERFERSTIFTE & HÜLSEN
ANHANG

Berichtigte Angaben als Ergänzung zu den Rockwell C-Werten für zylindrische Oberflächen
Ermittelter Wert (der Betrag, der beim Messen der Härte an der Maschine ablesbar ist)
ø 2 mm ø 3 mm ø 4 mm ø 5 mm ø 6 mm ø 7 mm ø 8 mm ø 9 mm ø 10 mm HRC Istwert
15,0 18,5 22,0 24,0 25,0 26,0 26,5 27,0 27,5 30
16,5 20,0 23,0 25,0 26,0 27,0 27,5 28,0 28,5 31
18,0 21,0 24,0 26,0 27,5 28,0 29,0 29,5 29,5 32
19,0 22,5 25,5 27,5 28,5 29,0 30,0 30,5 30,5 33
20,5 23,5 26,5 28,5 29,5 30,5 31,0 31,5 32,5 34
21,5 25,0 27,5 29,5 30,5 31,5 32,0 32,5 33,0 35
23,0 26,0 29,0 30,5 31,5 32,5 33,0 33,5 34,0 36
24,5 27,5 30,0 31,5 33,0 33,5 34,0 34,5 35,0 37
25,5 28,5 31,0 33,0 34,0 34,5 35,0 35,5 36,0 38
27,0 30,0 32,5 34,0 35,0 35,5 36,5 36,5 37,0 39
28,5 31,0 33,5 35,0 36,0 37,0 37,5 37,5 38,0 40
29,5 32,5 34,5 36,0 37,0 38,0 38,5 39,0 39,0 41
31,0 33,5 36,0 37,5 38,0 39,0 39,5 40,0 40,0 42
32,0 35,0 37,0 38,5 39,5 40,0 40,5 41,0 41,5 43
33,5 36,0 38,0 39,5 40,5 41,0 41,5 42,0 42,5 44
35,0 37,5 39,5 40,5 41,5 42,0 42,5 43,0 43,5 45
36,0 38,5 40,5 42,0 42,5 43,5 43,5 44,0 44,5 46
37,5 40,0 41,5 43,0 43,5 44,5 45,0 45,0 45,5 47
39,0 41,0 43,0 44,0 45,0 45,5 46,0 46,0 46,5 48
40,0 42,0 44,0 45,0 46,0 46,5 47,0 47,5 47,5 49
41,5 43,5 45,0 46,5 47,0 47,5 48,0 48,5 48,5 50
43,0 44,5 46,5 47,5 48,0 48,5 49,0 49,5 49,5 51
44,0 46,0 47,5 48,5 49,0 49,5 50,0 50,5 51,0 52
45,5 47,0 48,5 49,5 50,5 51,0 51,0 51,5 52,0 53
46,5 48,5 50,0 51,0 51,5 52,0 52,5 52,5 53,0 54
48,0 49,5 51,0 52,0 52,5 53,0 53,5 53,5 54,0 55
49,5 51,0 52,0 53,0 53,5 54,0 54,5 54,5 55,0 56
50,5 52,0 53,5 54,0 54,5 55,0 55,5 56,0 56,0 57
52,0 53,5 54,5 55,5 56,0 56,0 56,5 57,0 57,0 58
53,5 54,3 55,5 56,5 57,0 57,5 57,5 58,0 58,0 59
54,5 56,0 57,0 57,5 58,0 58,5 58,5 59,0 59,0 60
56,0 57,0 58,0 58,5 59,0 59,5 60,0 60,0 60,5 61
57,5 58,5 59,0 59,5 60,0 60,5 61,0 61,0 61,5 62
58,5 59,5 60,5 61,0 61,5 61,5 62,0 62,0 62,5 63
60,0 61,0 61,5 62,0 62,5 62,5 63,0 63,0 63,5 64
61,0 62,0 62,5 63,0 63,5 64,0 64,0 64,5 64,5 65
62,5 63,5 64,0 64,0 64,5 65,0 65,0 65,5 65,5 66
64,0 64,5 65,0 65,5 65,5 66,0 66,0 66,5 66,5 67
65,0 66,0 66,0 66,5 66,5 67,0 67,5 67,5 67,2 68

Querverweis Stahlnormen

Mat� Gruppe W�NR� EN AFNOR AISI
1�2067 100 Cr 6 100 C6 ~L3
WS 1�2510 100 MnCrW 4 90MCWV 5 O1
1�2210 115 CrV 3 115 CV 3 L2
1�2343 X 38 CrMoV 5 Z 38 CDV 5 H11
WAS
1�2344 X 40 CrMoV 5 1 Z 40 CDV 5 H13

CAD-Referenzpunkt
