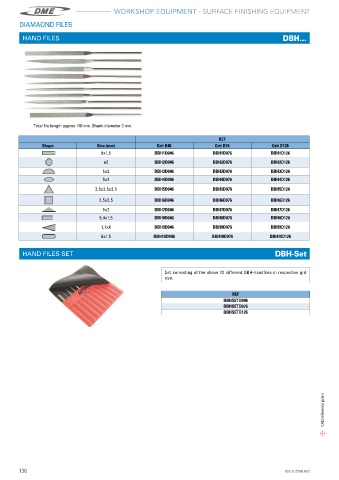

Page 138 - DME Workshop Equipment Catalogue 2023 EN

A
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
SURF
CE FINISHING EQUIPMENT
DIAMAOND FILES
HAND FILES DBH...

Total file length approx 140 mm� Shank diameter 3 mm�

REF
Shape Size (mm) Grit D46 Grit D76 Grit D126
6x1,5 DBH1D046 DBH1D076 DBH1D126
ø3 DBH2D046 DBH2D076 DBH2D126
5x2 DBH3D046 DBH3D076 DBH3D126
5x2 DBH4D046 DBH4D076 DBH4D126
3,5x3,5x3,5 DBH5D046 DBH5D076 DBH5D126
2,5x2,5 DBH6D046 DBH6D076 DBH6D126
6x2 DBH7D046 DBH7D076 DBH7D126
5,4x1,5 DBH8D046 DBH8D076 DBH8D126
1,7x6 DBH9D046 DBH9D076 DBH9D126
6x1,5 DBH10D046 DBH10D076 DBH10D126

HAND FILES SET DBH-Set

Set consisting of the above 10 different DBH-handfiles in respective grit
size�

REF
DBHSETD046
DBHSETD076
DBHSETD126

CAD reference point
