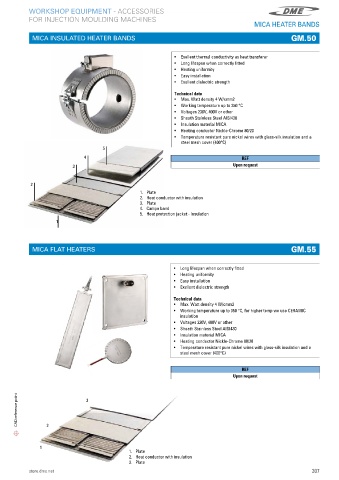

WORKSHOP EQUIPMENT - ACCESSORIES
FOR INJECTION MOULDING MACHINES
FOR INJECTION MOULDING MA CHINES
MICA HEATER BANDS
MICA INSULATED HEATER BANDS GM.50
• Exellent thermal conductivity as heat transferer
• Long lifespan when correctly fitted
• Heating uniformity
• Easy installation
• Exellent dielectric strength

Technical data
• Max� Watt density 4 W/cmm2
• Working temperature up to 350 °C
• Voltages 230V, 400V or other
• Sheath Stainless Steel AISI430
• Insulation material MICA
• Heating conductor Nickle-Chrome 80/20
• Temperature resistant pure nickel wires with glass-silk insulation and a
steel mesh cover (400°C)
5
4 REF
3 Upon request

2
1� Plate
2� Heat conductor with insulation
3� Plate
4� Campa band
5� Heat protection jacket - insulation
1

MICA FLAT HEATERS GM.55

• Long lifespan when correctly fitted
• Heating uniformity
• Easy installation
• Exellent dielectric strength

Technical data
• Max� Watt density 4 W/cmm2
• Working temperature up to 350 °C, for higher temp we use CERAMIC
insulation
• Voltages 230V, 400V or other
• Sheath Stainless Steel AISI430
• Insulation material MICA
• Heating conductor Nickle-Chrome 80/20
• Temperature resistant pure nickel wires with glass-silk insulation and a
steel mesh cover (400°C)

REF
Upon request

CAD reference point 2 3

1
1� Plate
2� Heat conductor with insulation
3� Plate
store.dme.net 307
