NOZZLE HEATERS

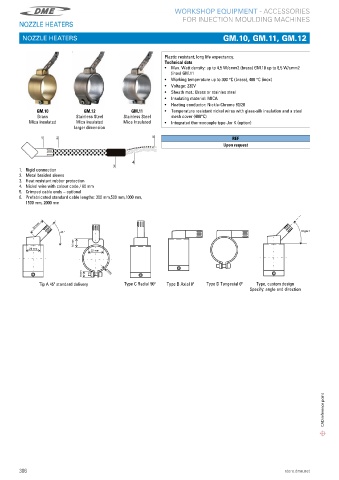

NOZZLE HEATERS GM.10, GM.11, GM.12
Plastic resistant, long life expectancy�
Technical data
• Max� Watt density: up to 4,5 W/cmm2 (brass) GM�10 up to 6,5 W/cmm2
(inox) GM�11
• Working temperature up to 300 °C (brass), 400 °C (inox)
• Voltage: 230V
• Sheath mat�: Brass or stainles steel
• Insulating material: MICA
• Heating conductor: Nickle-Chrome 80/20
GM.10 GM.12 GM.11 • Temperature resistant nickel wires with glass-silk insulation and a steel
Brass Stainless Steel Stainless Steel mesh cover (400°C)
Mica insulated Mica insulated Mica Insulated • Integrated thermocouple type Jor K (option)
larger dimension

REF
Upon request

1� Rigid connection
2� Metal braided sleeve
3� Heat resistant rubber protection
4� Nickel wire with colour code / 60 mm
5� Crimped cable ends – optional
6� Prefabricated standard cable lengths: 300 mm,500 mm,1000 mm,
1500 mm, 2000 mm

Tip A 45º standard delivery Type C Radial 90º Type B Axial 0º Type D Tangecial 0º Type, custom design
Specify: angle and direction

CAD reference point
