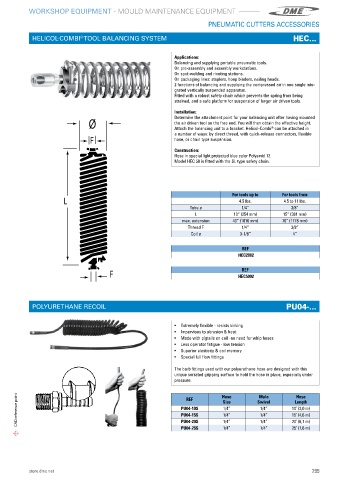

Page 297 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
W ORKSHOP EQ UIPMENT - MOULD MAINTENANCE EQUIPMENT
PNEUMATIC CUTTERS ACCESSORIES

HELICOL-COMBI TOOL BALANCING SYSTEM HEC...
®

Applications:
Balancing and supplying portable pneumatic tools�
On pre-assembly and assembly workstations�
On spot-welding and riveting stations�
On packaging lines: staplers, hoop binders, nailing heads.
2 functions of balancing and supplying the compressed air in one single inte-
grated vertically suspended apparatus�
Fitted with a robust safety chain which prevents the spring from being
strained, and a safe platform for suspension of larger air driven tools.
Installation:
Ø Determine the attachment point for your balancing unit after having mounted
the air driven tool on the free end� You will then obtain the effective height�
Attach the balancing unit to a bracket� Helicol-Combi can be attached in
®
a number of ways: by direct thread, with quick-release connectors, flexible
F hose, or chain type suspension.
Construction:
Hose in special light protected blue color Polyamid 12�
Model HEC 50 is fitted with the SL type safety chain�

For tools up to For tools from
L 4�5 lbs� 4�5 to 11 lbs�
Tube ø 1/4” 3/8”
L 10” (254 mm) 15” (381 mm)
max� extension 40” (1016 mm) 70” (1778 mm)
Thread F 1/4” 3/8”
Coil ø 3-1/8” 4”

REF
HEC2002

REF
F HEC5002

POLYURETHANE RECOIL PU04-...

• Extremely flexible - resists kinking
• Impervious to abrasion & heat
• Made with pigtails on coil -no need for whip hoses
• Less operator fatigue - low tension
• Superior elasticity & coil memory
• Special full flow fittings
The barb fittings used with our poly ure thane hose are designed with this
unique serrated grip ping surface to hold the hose in place, es pe cial ly un der
pressure�

CAD reference point PU04-10S Hose Swivel 10’ (3,0 m)
Hose
Male
REF
Size
Length
1/4”
1/4”
1/4”
PU04-15S
15’ (4,6 m)
1/4”
PU04-20S
1/4”
25’ (7,6 m)
PU04-25S 1/4” 1/4” 20’ (6,1 m)
1/4”
