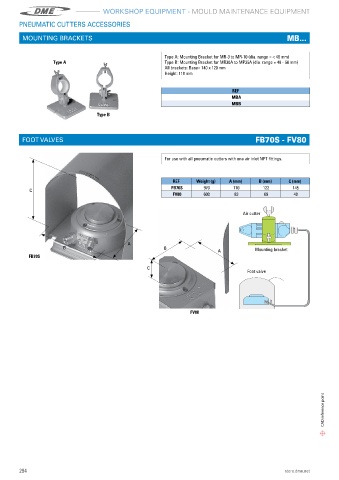

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
W
ORKSHOP EQ
MOULD MAINTENANCE EQUIPMENT

PNEUMATIC CUTTERS ACCESSORIES
MOUNTING BRACKETS MB...

Type A: Mounting Bracket for MR-3 to MR-10 (dia� range = < 46 mm)
Type A Type B: Mounting Bracket for MR30A to MP35A (dia� range = 48 - 56 mm)
All brackets: Base= 140 x 120 mm
Height: 118 mm

REF
MBA
MBB
Type B

FOOT VALVES FB70S - FV80

For use with all pneumatic cutters with one air inlet NPT fittings�

REF Weight (g) A (mm) B (mm) C (mm)
FB70S 970 110 122 145
C
FV80 600 83 69 48

Air cutter

A
B B
A Mounting bracket
FB70S
C
Foot valve

FV80

CAD reference point
