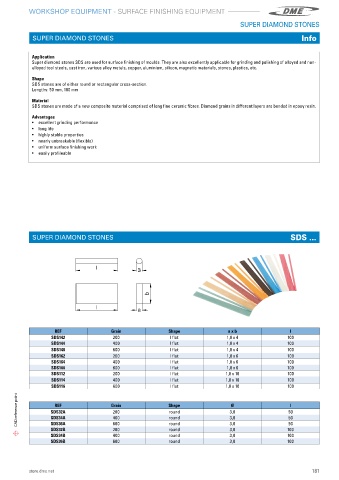

Page 183 - DME Workshop Equipment Catalogue 2023 EN

A
CE FINISHING EQUIPMENT
SURF
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
SUPER DIAMOND STONES
SUPER DIAMOND STONES Info

Application
Super diamond stones SDS are used for surface finishing of moulds� They are also excellently applicable for grinding and polishing of alloyed and non-
alloyed tool steels, cast iron, various alloy metals, copper, aluminium, silicon, magnetic materials, stones, plastics, etc�

Shape
SDS stones are of either round or rectangular cross-section�
Lengths: 50 mm, 100 mm
Material
SDS stones are made of a new composite material comprised of long fine ceramic fibres� Diamond grains in different layers are bonded in epoxy resin�
Advantages
• excellent grinding performance
• long life
• highly stable properties
• nearly unbreakable (flexible)
• uniform surface finishing work
• easily profileable

SUPER DIAMOND STONES SDS ...

l 3

b

l a

REF Grain Shape a x b l
SDS142 200 l flat 1,0 x 4 100
SDS144 400 l flat 1,0 x 4 100
SDS146 600 l flat 1,0 x 4 100
SDS162 200 l flat 1,0 x 6 100
SDS164 400 l flat 1,0 x 6 100
SDS166 600 l flat 1,0 x 6 100
SDS112 200 l flat 1,0 x 10 100
SDS114 400 l flat 1,0 x 10 100
SDS116 600 l flat 1,0 x 10 100
CAD reference point SDS32A Grain Shape 3,0 50
Ø
REF
l
round
200
50
round
3,0
400
SDS34A
SDS36A
50
3,0
SDS32B 600 round 3,0 100
200
round
SDS34B 400 round 3,0 100
SDS36B 600 round 3,0 100
store.dme.net 181
