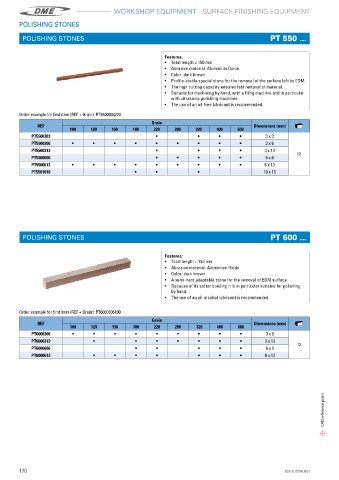

Page 172 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT
POLISHING STONES
POLISHING STONES PT 550 ...

Features:
• Total length = 150 mm
• Abrasive material: Aluminium Oxide
• Color: dark brown
• Profile-stable special stone for the removal of the surface left by EDM�
• The high cutting capacity ensures fast removal of material�
• Suitable for machining by hand, with a filing machine and in particular
with ultrasonic polishing machines�
• The use of an oil-free lubricant is recommended�
Order example for first item (REF + Grain): PT5500303220
Grain
REF Dimensions (mm)
100 120 150 180 220 280 320 400 600
PT5500303 i i i i 3 x 3
PT5500306 i i i i i i i i i 3 x 6
PT5500313 i i i i 3 x 13 12
PT5500606 i i i i i 6 x 6
PT5500613 i i i i i i i i i 6 x 13
PT5501010 i i i 10 x 10

POLISHING STONES PT 600 ...

Features:
• Total length = 150 mm
• Abrasive material: Aluminium Oxide
• Color: dark brown
• A semi-hard adaptable stone for the removal of EDM surface�
• Because of its softer bonding it is in particular suitable for polishing
by hand�
• The use of an oil-alcohol lubricant is recommended�

Order example for first item (REF + Grain): PT6000306100
Grain
REF Dimensions (mm)
100 120 150 180 220 280 320 400 600
PT6000306 i i i i i i i i i 3 x 6
PT6000313 i i i i i i i 3 x 13 12
PT6000606 i i i i i 6 x 6
PT6000613 i i i i i i i 6 x 13

CAD reference point

170 store.dme.net
