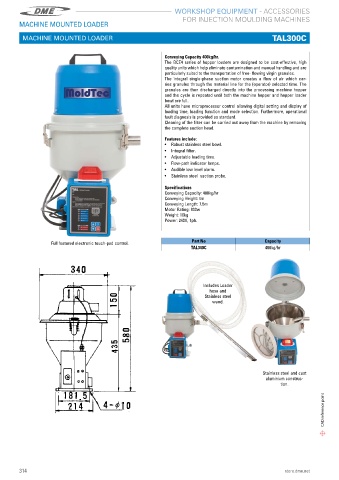

Page 316 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - ACCESSORIES

ORKSHOP EQ
W
CCESSORIES
UIPMENT -
A
FOR INJECTION MOULDING MACHINES
FOR INJECTION MOULDING MA CHINES
MACHINE MOUNTED LOADER
MACHINE MOUNTED LOADER TAL300C
Conveying Capacity 400kg/hr.
The BCE4 series of hopper loaders are designed to be cost-effective, high
quality units which help eliminate contamination and manual handling and are
particularly suited to the transportation of free- flowing virgin granules�
The integral single-phase suction motor creates a flow of air which car-
ries granules through the material line for the (operator) selected time� The
granules are then discharged directly into the processing machine hopper
and the cycle is repeated until both the machine hopper and hopper loader
bowl are full�
All units have microprocessor control allowing digital setting and display of
loading time, loading function and mode selection� Furthermore, operational
fault diagnosis is provided as standard�
Cleaning of the filter can be carried out away from the machine by removing
the complete suction head�

Features include:
• Robust stainless steel bowl�
• Integral filter�
• Adjustable loading time�
• Flow-path indicator lamps�
• Audible low level alarm�
• Stainless steel suction probe�
Specifications
Conveying Capacity: 400kg/hr
Conveying Height: 4m
Conveying Length: 7�5m
Motor Rating: 800w
Weight: 16kg
Power: 240V, 1ph�

Full featured electronic touch-pad control� Part No Capacity
TAL340C 400kg/hr

Includes Loader
hose and
Stainless steel
wand�

Stainless steel and cast
aluminium construc-
tion�
CAD reference point
