WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
W ORKSHOP EQ UIPMENT - MOULD MAINTENANCE EQUIPMENT

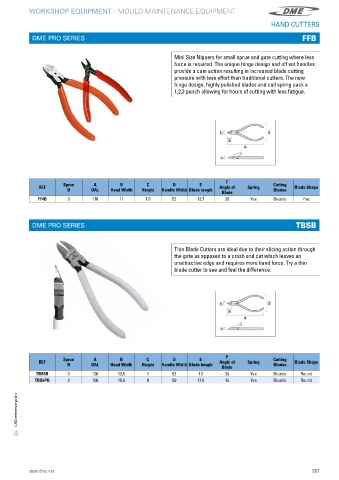

HAND CUTTERS

DME PRO SERIES FFB

Mini Size Nippers for small sprue and gate cutting where less
force is required. The unique hinge design and off set handles
provide a cam action resulting in increased blade cutting
pressure with less effort than traditional cutters. The new
hinge design, highly polished blades and coil spring pack a
1,2,3 punch allowing for hours of cutting with less fatigue.

F
REF Sprue A B C D E Angle of Spring Cutting Blade Shape
Ø OAL Head Width Height Handle Width Blade length Blades
Blade
FF4B 3 110 11 7�5 53 12,7 25 Yes Double Flat

DME PRO SERIES TBSB

Thin Blade Cutters are ideal due to their slicing action through
the gate as apposed to a crush and cut which leaves an
unattractive edge and requires more hand force� Try a thin
blade cutter to see and feel the difference�

F
Sprue A B C D E Cutting
REF Angle of Spring Blade Shape
Ø OAL Head Width Height Handle Width Blade length Blades
Blade
TBS5B 3 126 13,5 7 52 13 25 Yes Double Round
TBS6PB 2 156 15,5 9 50 17,5 15 Yes Double Round
CAD reference point
