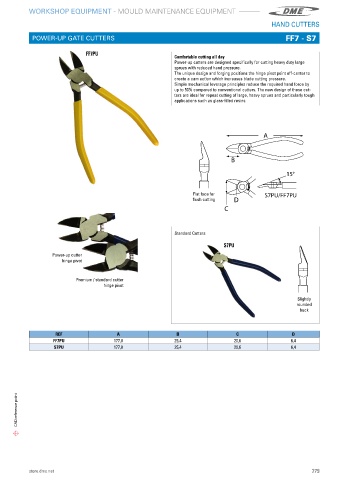

Page 281 - DME Workshop Equipment Catalogue 2023 EN

WORKSHOP EQUIPMENT - MOULD MAINTENANCE EQUIPMENT
W ORKSHOP EQ UIPMENT - MOULD MAINTENANCE EQUIPMENT
HAND CUTTERS

POWER-UP GATE CUTTERS FF7 - S7
FFPU - SPU
FF7PU
Comfortable cutting all day
Power-up cutters are designed specifically for cutting heavy duty large
sprues with reduced hand pressure�
The unique design and forging positions the hinge pivot point off-center to
create a cam action which increases blade cutting pressure�
Simple mechanical leverage principles reduce the required hand force by
up to 50% compared to conventional cutters� The new design of these cut-
ters are ideal for repeat cutting of large, heavy sprues and particularly tough
applications such as glass-filled resins�

A 15°

B D S7PU/FF7PU
C
A 15°

Flat Face S7PU/FF7PU
Flat face for
B flush cutting D
for ush C
cutting

Standard Cutters

S7PU
Power-up cutter
hinge pivot

Premium / standard cutter
hinge pivot
Slightly
Slightly
rounded
rounded
back
back

REF A B C D
FF7PU 177,8 25,4 20,6 6,4
S7PU 177,8 25,4 20,6 6,4

CAD reference point
