Page 107 - DME Workshop Equipment Catalogue 2023 EN

A
SURF
CE FINISHING EQUIPMENT
WORKSHOP EQUIPMENT - SURFACE FINISHING EQUIPMENT

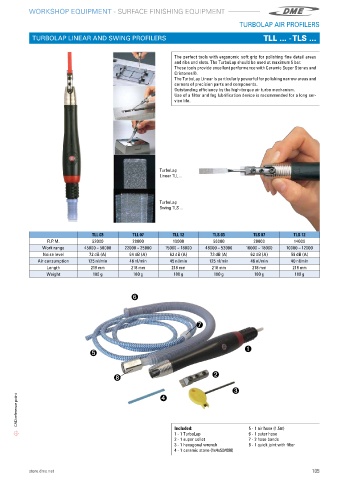

TURBOLAP AIR PROFILERS
TURBOLAP LINEAR AND SWING PROFILERS TLL ... - TLS ...

The perfect tools with ergonomic soft grip for polishing fine detail areas
and ribs and slots� The TurboLap should be used at maximum 5 bar�
These tools provide excellent performance with Ceramic Super Stones and
Cristones®�
The TurboLap Linear is particularly powerful for polishing narrow areas and
corners of precision parts and components�
Outstanding efficiency by the high-torque air turbo mechanism�
Use of a filter and fog lubrification device is recommended for a long ser-
vice life�

TurboLap
Linear TLL ���

TurboLap
Swing TLS ���

TLL 03 TLL 07 TLL 12 TLS 03 TLS 07 TLS 12
R�P�M� 52000 28000 19000 56000 20000 14000
Work range 45000 ~ 50000 22000 ~ 25000 15000 ~ 18000 48000 ~ 53000 16000 ~ 18000 10000 ~ 12000
Noise level 72 dB (A) 64 dB (A) 63 dB (A) 73 dB (A) 62 dB (A) 59 dB (A)
Air consumption 125 nl/min 46 nl/min 45 nl/min 125 nl/min 46 nl/min 40 nl/min
Length 218 mm 218 mm 218 mm 218 mm 218 mm 218 mm
Weight 180 g 180 g 180 g 180 g 180 g 180 g

➏

➐

➊
➎

➑ ➋

➌
CAD reference point
➍

Included: 5 - 1 air hose (1�5m)
1 - 1 TurboLap 6 - 1 outer hose
2 - 1 super collet 7 - 2 hose bands
3 - 1 hexagonal wrench 8 - 1 quick joint with filter
4 - 1 ceramic stone (1x4x50#800)

store.dme.net 105
